Bored Sy-8360 Pile Testing Equipment Ultrasonic Drill Hole Monitor

Product Categories

Beijing Samyon Instruments Co., Ltd.

Contact Now

Name: Bored Sy8360 Pile Testing Equipment Ultrasonic Drill Hole Monitor
Brand: SAMYON
Price: 1 USD

Brand Name : SAMYON

Model Number : SY-8360

Certification : ISO

Place of Origin : CN

MOQ : 1set

Price : Can be negotiated

Payment Terms : Western Union, MoneyGram, , T/T, D/P, D/A

Supply Ability : 999/mth

Delivery Time : 3-5days

Packaging Details : Carton

Name : Bored pile hole tester

Standard : DGJ32/J 21

Test method : Ultrasonic testing method

Test range : 300 to 11000mm (hole diameter)

Test depth : 100m or 150m

Mud ratio : =<1.4g/cm3

Contact Now

Bored Sy-8360 Pile Testing Equipment Ultrasonic Drill Hole Monitor

Advantage:

Small Size

Winch is with small size and about 80kg, can be carried by car for easy transportation and testing.

Dry & Wet Testing

It can test dry hole and wet hole, can be suitable for different project testing with stable result.

Powerful Probe

Test range will be from 300mm to 11000mm, mud ratio can be up to 1.4g/cm³.

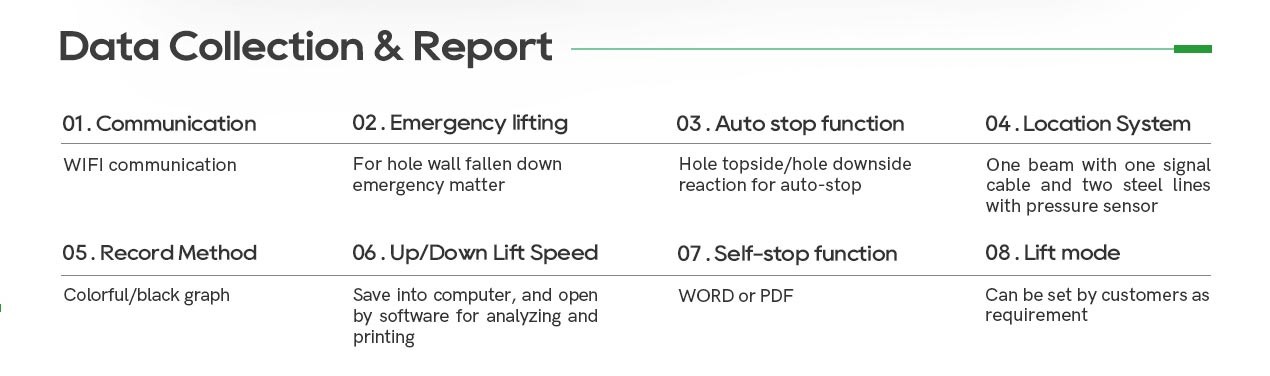

Data collection

With WIFI communication between PC and winch for data collection.

Item	Name	Details
1	Test method	Ultrasonic testing method
2	Direction	Four directions (X, X’, Y, Y’)
3	Test range	300 to 11000mm (hole diameter)
4	Test depth	100m or 150m
5	Mud ratio	=<1.4g/cm3
6	Winch weight	80kg
7	Software	With 3D image (optional)
8	Lift and down speed	0-20m/min, adjustable
9	Ultrasonic frequency	83kHz
10	Transmit voltage	1000V
11	Scan speed	>=20times per second
12	Power supply	220VAC or Li battery
13	Depth resolution	=< 5mm, error=<0.1%
14	Frequency bandwidth	1-500k
15	Sonic precision	=<0.5%
16	Test precision(horizontal)	+/-0.2% FS
17	Probe dimension	104104300mm
18	Probe weight	14kg
19	Auto stop function	Touch wall or hole downside will automatically stop
20	Probe structure	With two sides wire line to hold the weight, and the signal cable support it
21	Winch dimension	800500390mm

Bored Sy-8360 Pile Testing Equipment Ultrasonic Drill Hole Monitor
